Paraconsistent Library - Python PAL2v Implementation

How to reference the project:

At EAILab, our mission is to promote science and the use of artificial intelligence. Therefore, if you use the library in academic work, we would be very grateful if you could cite us, helping to further spread and promote the project.

DA CRUZ, Diego Oliveira; ALVES, Bruno. Da Silva; CARVALHO JUNIOR, Arnaldo. Paraconsistent-Lib, Python Library, EAILAB, IFSP, Sao Paulo - Brazil, 2025.

Overview

Paraconsistent logic (PL) is a type of logical reasoning that is interesting to deal with contradictory signals because, contrary to classical logic, it does not consider a contradiction as a foundation for invalidating the entire inference system. PL enables the quantification of the degree of contradiction and certainty of information, allowing conflicting data to be processed in a controlled manner and without loss of consistency.

Main Features:

Modular architecture based on connectable blocks
Zero external dependencies, it's necessary only the standard Python library.
Complete implementation of PAL2v with 12 logical state regions
Automatic calculation of degrees of certainty, contradiction, and evidence
Type-safe with full support for Python type hints
Smart caching for performance optimization

How to install

Requirements: Python 3.9 or higher

The installation is done via pip. To install, simply type the following command in your terminal:

pip install paraconsistent

Theory of Logic

PAL2v works with two degrees of evidence:

μ (mu): Favorable evidence degree, μ ∈ [0, 1]
λ (lambda): Unfavorable evidence degree, λ ∈ [0, 1]

From these values, the following are calculated:

dc (Degree of Certainty): dc = μ - λ, dc ∈ [-1, 1]
dct (Degree of Contradiction): dct = μ + λ - 1, dct ∈ [-1, 1]

Decision Output:

1.0 if μER > FtC (Accept as true)
0.0 if μER < FtC (Reject as false)
0.5 if μER = FtC (Indecision)

Complementary Metrics

Radial Distance:

d: Euclidean distance to the nearest vertex
D: Normalized distance (clamped to [0, 1])

Degree of Real Certainty:

dcr: dcr = (1 - D) × sign(dc)

Resulting Evidence:

μE: Evidence based on contradiction: μE = (dc + 1) / 2
μECT: Evidence of contradiction: μECT = (dct + 1) / 2
μER: Actual evidence: μER = (dcr + 1) / 2

Certainty Interval:

φ (phi): φ = 1 - |dct|

Logical State Regions

PAL2v defines 12 regions in the unit square of annotation (QUPC), and your answer will be in one of those regions.

Extreme States:

t (true): High positive certainty
f (false): High negative certainty
┬ (Inconsistent): High positive contradiction
┴ (Paracomplete): High negative contradiction

Transition States:

Q(t→T) → Quasi-true, tending to inconsistent
Q(t→⊥) → Quasi-true, tending to paracomplete
Q(F→T) → Quasi-false, tending to inconsistent
Q(F→⊥) → Quasi-false, tending to paracomplete
Q(T→t) → Quasi-inconsistent, tending to true
Q(T→F) → Quasi-inconsistent, tending to false
Q(⊥→t) → Quasi-paracomplete, tending to true
Q(⊥→F) → Quasi-paracomplete, tending to false

User Guide

First of all, to create a block, write this:

from paraconsistent.blocks import ParaconsistentBlock

# Create block with default values
block = ParaconsistentBlock()

Configure the block parameters:

from paraconsistent.blocks import ParaconsistentBlock
block = ParaconsistentBlock()

# Configure certainty control limit (FtC)
block.config.FtC = 0.70

Set Inputs (μ, λ):

# Define levels of evidence
block.input.mu = 0.80  # Favorable evidence
block.input.lam = 0.20  # Unfavorable evidence

How to display the results:

# Access individual results
dc = block.complete.dc      # Degree of Certainty
dct = block.complete.dct    # Degree of Contradiction
muER = block.complete.muER  # Real Evidence
label = block.complete.label  # Logical Region

# Or print all results
block.print_complete()

How to Connect Multiple Blocks

# Create a network of two blocks
b1 = ParaconsistentBlock()
b2 = ParaconsistentBlock()

# Configure block 1
b1.config.FtC = 0.70
b1.input.mu = 0.80
b1.input.lam = 0.30

# Use the output of b1 as the input of b2
b2.input.mu = b1.complete.muER
b2.input.lam = 1 - b1.complete.phi

# Result propagated automatically
print(f"Final state: {b2.complete.label}")

API Reference

Builder

ParaconsistentBlock(
    *,
    mu: float | None = None,
    lam: float | None = None,
    **param_overrides
)

Parameters:

μ (mu): Favorable evidence degree (optional)
λ (lambda): Unfavorable evidence degree (optional)
**param_overrides: Configuration parameters (FtC)

Configuration (config)

Parameter	Type	Range	Default	Description
FtC	float	[0, 1]	0.50	Certainty Tolerance Factor (Certainty Control Limit)

The FtC input parameter modifies the shape of the QUPC by adjusting the geometry of the Lattice (green line). As an example, we have two images: when FtC is 0.75, it reduces the areas of t and F while expanding the regions of T and Paracomplete; however, when FtC is 0.25, it increases the areas of t and F and decreases those of T and Paracomplete.

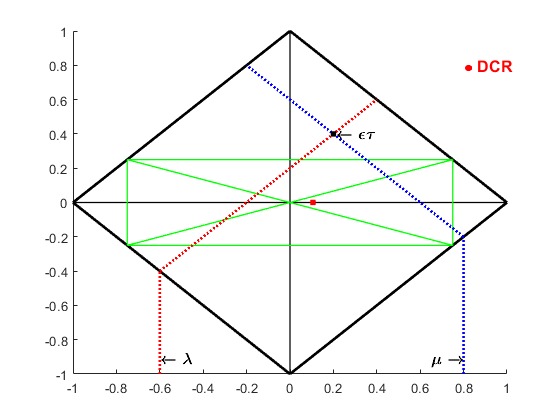

QUPC diagram with FtC = 0.75 showing reduced t and F areas

Example FtC = 0.75

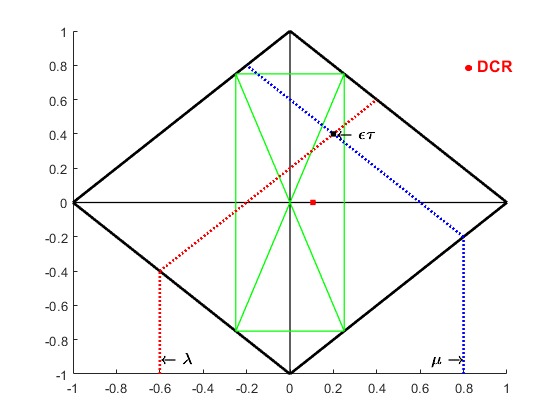

QUPC diagram with FtC = 0.25 showing expanded t and F areas

Example FtC = 0.25

Note: The values VSSC, VICC, VSSCT, and VICCT are automatically calculated based on FtC.

Inputs

# Method 1: Direct assignment
block.input.mu = 0.80
block.input.lam = 0.20

# Method 2: Functional approach
block.input(mu=0.80, lam=0.20)

Values are automatically clamped in the range [0, 1].

Outputs (Complete)

Field	Type	Range	Description
mu	float	[0, 1]	Favorable level of evidence
lam	float	[0, 1]	Unfavorable level of evidence
dc	float	[-1, 1]	Degree of Certainty: μ - λ
dct	float	[-1, 1]	Degree of Contradiction: μ + λ - 1
d	float	[0, ∞)	Raw radial distance
D	float	[0, 1]	Normalized radial distance
dcr	float	[-1, 1]	Degree of Real Certainty: (1 - D) × sign(dc)
phi	float	[0, 1]	Certainty interval: 1 - \|dct\|
phiE	float	[0, 1]	Certainty interval (alias of phi)
muE	float	[0, 1]	Resulting evidence: (dc + 1) / 2
muECT	float	[0, 1]	Contradiction evidence: (dct + 1) / 2
muER	float	[0, 1]	Real evidence: (dcr + 1) / 2
decision_output	float	{0.0, 0.5, 1.0}	Binary decision output
label	str	-	Logical region label (t, f, ┬, ┴, etc.)
Regions	dict	-	Boolean flags per region
FtC	float	[0, 1]	Echo of parameters used in the calculation

Methods

# Export as a typed dictionary
result: Complete = block.to_dict()

# Print formatted to the console
block.print_complete()

# Set FtC parameter
block.set_params(FtC=0.7)

Examples of a paraconsistent analysis network project using the library

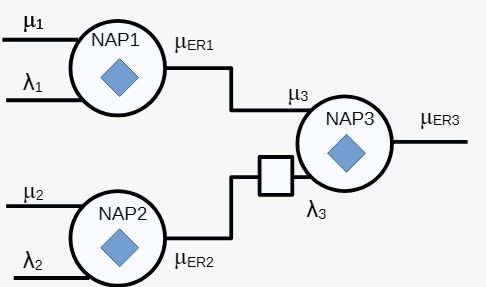

Flowchart diagram showing paraconsistent analysis network with NAP1, NAP2, and NAP3 blocks

Flowchart of the following example

# Paraconsistent Library developed by Diego Oliveira da Cruz - EAILAB - IFSP
# Oriented by Dr. Arnaldo de Carvalho Junior - EAILAB-IFSP
# Date: 04/nov/2025

# Installing PAL2v Library
%pip install pythonping paraconsistent

# Paraconsistent Analysis Network (PANnet)
# Created by: Dr. Arnaldo de Carvalho Junior
# Date: 04/11/2025
# Example application of the Paraconsistent-Lib Library

# Calls the Paraconsistent Library
from paraconsistent import ParaconsistentBlock

# 1) Create the PAN blocks
PAN1 = ParaconsistentBlock()
PAN2 = ParaconsistentBlock()
PAN3 = ParaconsistentBlock()

# 2) Adjust the Certainty Factor parameter (affects the geometry of the 12 paraconsistent logical states)
# Reference value: 0.5
PAN1.config.FtC = 0.5
PAN2.config.FtC = 0.5
PAN3.config.FtC = 0.5

# 3) Define the mu and lambda
PAN1.input.mu = 0.45
PAN1.input.lam = 0.76
PAN2.input.mu = 1.00
PAN2.input.lam = 0.40
PAN3.input.mu = NAP1.complete.muER
PAN3.input.lam = 1 - NAP2.complete.muER

# Output of the Paraconsistent Analysis Network
print(f"Result of the PAL2v Analysis = {PAN3.complete.muER:.3f}")

More examples:

Architecture

├── blocks/
│   └── block.py — ParaconsistentBlock class
├── core/
│   ├── config.py — Configuration and validation
│   ├── engine.py — Calculation engine
│   ├── metrics.py — Geometric metrics
│   ├── labels.py — Region classification
│   └── types.py — Type definitions
└── __init__.py

Calculation Flow

Input: Validation and clamping of μ and λ
Main Degrees: Calculation of dc and dct
Geometry: Calculation of d, D, and dcr
Evidence: Calculation of μE, μECT, μER, and φ
Decision: Comparison of μER with FtC
Classification: Identification of the logical region

Cache and Performance

The system features an intelligent caching mechanism that automatically refreshes whenever inputs or parameters are modified, guaranteeing result consistency while maintaining optimal performance.
